ADJ MCTRL300

SKU
237001
599,00 €
Inkl. 19% MwSt., exkl. Versandkosten
Lieferzeit
ca. 2-5 Werktage

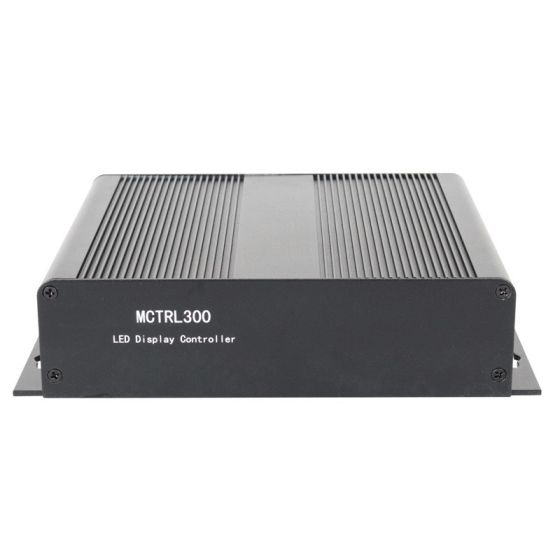

The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs for 2 independant screens. The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280x1024, 1024x200, 1600x848, 1920x712, 2048x668. The MCTRL-300 is an essential accessory for the AV6 video panels.

Technische Daten:

  • Control mode: synchronous display with control PC by DVI
  • Frame update frequency: 50 - 60 Hz
  • Scan mode: 1/12 Duty
  • Refresh rate: 1200 Hz
  • Support input: Composite, S-Video, Component, VGA, DVI,
  • HDMI, HD_SDI to DVI
    • Control distance: Ethernet Cable <100m or Fiber Optic>120 m
    • Supported Modes: 1280x1024, 1024x1200, 1600x848, 1920x712, 2048x668
    • Brightness correction: Pixel, Module, Cabinet
    • Requires a computer (sold separately)
    • 2 separate RJ45 CAT6 outputs for 2 AV-6 screens (mirrored or independant content)

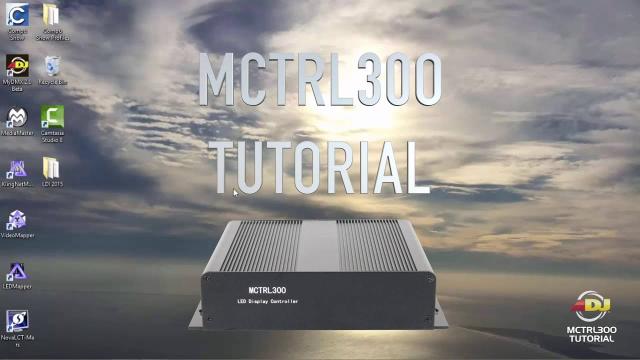

ADJ MCTRL300 Tutorial
ADJ MCTRL300 Tutorial
