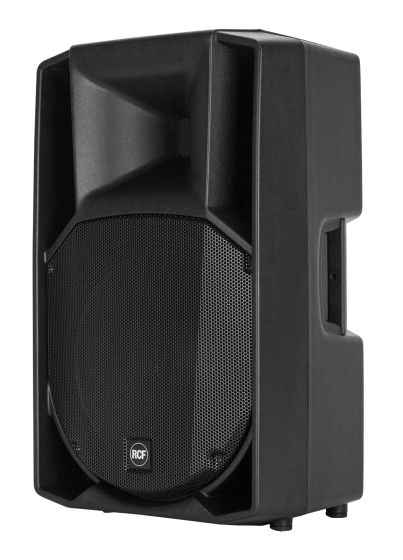

RCF ART 745-A MK4

SKU
239975
1.272,00 €
Inkl. 19% MwSt., exkl. Versandkosten
Lieferzeit
ca. 2-5 Werktage
  • 133 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 15"
  • Klinke (6.3mm)
  • XLR
The ART 745-A MK4 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Features:

  • 133 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 1.4'' Titanium Compression Driver, 4.0'' v.c. Neodimium
  • 15'' Neodimium Woofer
  • 650 Hz crossover point for perfect vocal reproduction
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology

Technische Daten:

  • Frequency Response -3 dB:45 Hz ÷ 20000 Hz
  • Max SPL:133 dB
  • Horizontal coverage angle:90°
  • Vertical coverage angle:60°
  • Compression Driver:1.4'' neo, 4.0'' v.c.
  • Woofer:15'' neo, 3.5'' v.c.
  • Input signal:Bal / unbal
  • Input connectors:XLR, Jack
  • Output connectors:XLR
  • Input sensitivity:-2 dBu / +4 dBu
  • Crossover frequencies:650 Hz
  • Protections:Thermal, rms
  • Limiter:Soft limiter
  • Controls:Volume, Boost, Mic/Line
  • Total power:1400 W PEAK
  • High frequencies:400 W PEAK
  • Low frequencies:1000 W PEAK
  • Total power:700 W RMS
  • High frequencies:200 W RMS
  • Low frequencies:500 W RMS
  • Cooling:Convection
  • Connections:VDE connector in
  • Cabinet Material:Composite PP
  • Hardware:2xM10 flying p.
  • Handles:2 side, 1 top
  • Pole Mount/Cap:Yes
  • Grille:Steel
  • Colour:Black
  • Height:708 / 27.87 mm/inch
  • Width:437 / 17.2 mm/inch
  • Depth:389 / 15.31 mm/inch
  • Net Weight:18.8 / 41.45 kg/lbs
