RCF SUB 705-AS II

SKU
236134
999,00 €
Inkl. 19% MwSt., exkl. Versandkosten
Lieferzeit
ca. 2-5 Werktage
  • 1400 Watt Digital Amplifier
  • 15'' woofer, bass reflex housing
  • Stereo crossover

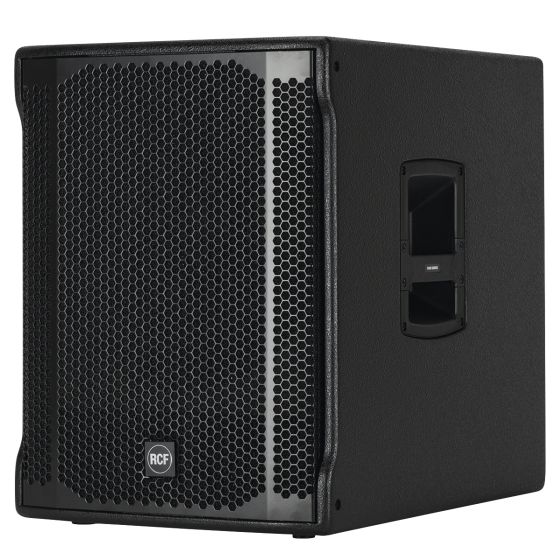

The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15'' high power woofer with 3'' voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12'' and 15'', ideal for RCF ART and D-Line Series.

Features:

  • 1400 Watt Digital Amplifier
  • 15'' woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, stereo XLR signal output

Technische Daten:

    Acoustical Specifications:
    • Frequency response -3 dB: 40 Hz - 120 Hz
    • Max SPL: 131 dB
    • Woofer: 15'', 3.0'' v.c.
    • Input/Output Section
    • Input connectors: Stereo XLR
    • Output connectors: Stereo XLR
    • Input sensitivity: -2 dBu / +4 dBu
    Processor Section:
    • Crossover frequencies: 80 - 110 Hz
    • Protections: thermal, rms
    • Limiter: soft limiter
    • Controls: volume, EQ, phase, xover
    Amplifier Specifications:
    • Total power: 1400 W peak
    • Low frequencies: 1400 W peak
    • Total power: 700 W RMS
    • Low frequencies: 700 W RMS
    • Cooling: convection
    • Connections: VDE connector
    Cabinet:
    • Cabinet Material: Baltic birch plywood
    • Hardware: Pole mount
    • Handles: 2 side
    • Pole Mount/Cap: yes
    • Grille: Steel
    • Colour: Black
    • Dimensions: 568 x 430 x 595 mm
    • Weight:28.0 kg
