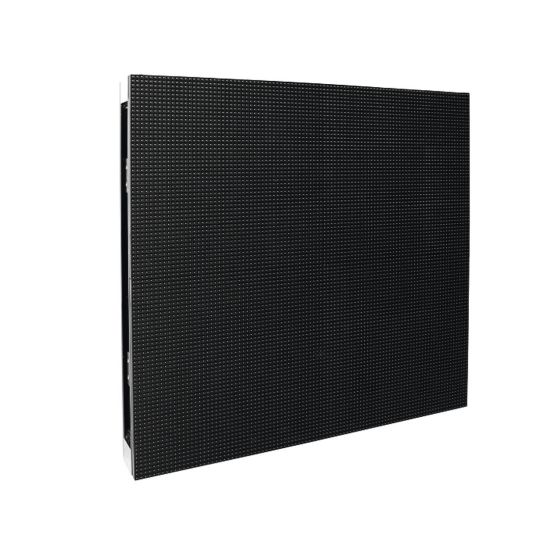

ADJ AV6

Features:

• Pixel Pitch: 6.0 mm (0.25''')
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 576 x 576 x 75 mm
• Module Quantity: 4
• Weight: 8.15 kg
• Mechanical Ratings:
• Surface Flatness: Gaps <0.5 mm
• Optical Ratings:
• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Distance: 20 ft (6 m)
• Gray Scale / Display Color: 14-Bit
• Brightness Adjustment: 0~100%, 100 levels
• Processing: 14-Bit
• Power Supply:
• Operation Power: 100~240 V, 50 - 60 Hz
• Max. Power Consumption: 200 W/per panel
• Ave. Power Consumption: 80 W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
• Control System:
• Control Mode: Synchronous Display with Control PC by DVI
• Frame Update Frequency: 50 - 60 Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 960 Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100 m or Fiber Optic >120 m
• Support VGA Mode: 1024x768, 1280x1024, 1600x1200, 1920x1280
• Brightness Correction: Pixel, Module, Cabinet
• Environmental:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 100,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: CE, FCC Class A, RoHS, China RoHS
• Optional Accessories:
• All accessories to be announced at a later date.
